Wakefield pan installation navigates the town's two water realities: lakefront and Crystal Lake-area homes with high water tables and damp basements, and 1920s to 1950s colonials with original galvanized or early copper where seized shutoffs and corroded top fittings are the norm. Both need pans; the specifications differ.
Lakefront installs pair corrosion-resistant pans with stands, verified sump operation, and sensors. Colonial installs pair the pan with valve replacement and fitting correction during the lift. Our Wakefield work scopes the protection to the address, with no water-chemistry assumptions anywhere in the recommendation.
Lakefront Dampness and Colonial Fittings: Two Specs, One Town
Lakefront and Crystal Lake-area installs follow the damp-basement specification: corrosion-resistant metal pan, stand elevating the tank above the high-water-table slab, drain routed with pitch to a verified sump or floor drain, sensor and automatic shutoff completing the system. Lake-effect dampness corrodes jackets and fittings year-round here, so the pan protects against the seeps that environment produces, and the stand directly extends the next tank's life.
Colonial installs follow the fitting-first specification. With the tank lifted we correct the corroded tank-top fittings that define 1920s to 1950s Wakefield plumbing and replace the seized shutoff with a full-port ball valve, work that is part of nearly every heater job in these houses. The pan then guards against the next generation of fitting weeps. Capes with knee-wall heater relocations get an honest access and freeze assessment with the estimate, and where relocation to the basement is the right long-term fix, the pan is specified for the new location rather than the compromised one.
Wakefield Housing Stock and What It Means for water heater pan installation
Wakefield mixes 1920s to 1950s colonials, capes, and two-families with lakefront homes around Lake Quannapowitt, 1960s and 1970s splits and ranches, and some new construction. Pre-war homes carry galvanized pipe, post-war stock runs aging copper, new builds use PEX, and basement heaters are standard. Full basements dominate, lakefront and Crystal Lake-area homes sit over high water tables, and some ranches have crawl spaces.
For water heater pan installation, the 1920s to 1950s colonials set the pattern: original galvanized or early copper with seized shutoffs and corroded tank-top fittings as the norm, so valve replacement is part of nearly every heater job rather than an add-on. Lakefront homes with high water tables get the damp-basement bottom-corrosion treatment, with tanks elevated and sump pumps verified. Capes with dormered attics sometimes have heaters relocated into knee-wall spaces, which leaves them freeze-exposed and hard to service, and relocating the heater back to the basement is often the right long-term fix discussed during water heater pan installation.
Wakefield Water Supply and Winter Conditions
Wakefield runs a blended supply: roughly 85 to 91 percent MWRA water plus a Crystal Lake Reservoir supplement treated at the Broadway Treatment Facility. The MWRA portion is soft, around 15 to 20 parts per million, while the Crystal Lake portion's exact chemistry is unverified, so water heater pan installation here makes no hard-water scale claims and focuses on age-related failure, fitting corrosion, and basement conditions instead.
Winters follow the regional freeze baseline with lake-effect dampness near Lake Quannapowitt and real inland cold snaps. Heaters near the lake get checked for damp-air corrosion on jackets and fittings, and exposed piping in capes and ranches gets winterized as part of cold-season water heater pan installation.
What a Drain Pan Actually Does for Your Wakefield Home
A drain pan is a shallow, watertight tray that sits under your water heater and catches slow seeps before they reach your floor. A drain fitting in the pan connects to a PVC line that routes captured water to a floor drain, laundry standpipe, sump pit, or the exterior, so a weeping fitting or a pinhole tank leak becomes a manageable drip instead of a spreading puddle. It will not contain a catastrophic tank rupture, but ruptures are rare compared to the slow leaks that quietly destroy flooring, drywall, and stored belongings over weeks.
In Wakefield, pans matter most where the heater sits above or beside finished space: finished basements, first-floor closets, and any install where a leak would damage something expensive. Local plumbing code commonly requires a pan with a drain wherever a tank is installed in a location where leakage could cause damage, so many Wakefield installs need one by rule, not just by prudence. A pan is cheap protection against the most common and most expensive kind of water heater failure: the slow one nobody notices.
It is worth understanding what a pan does not do, so expectations stay honest. A pan will not stop a leak at its source, it will not help if its drain line is clogged or improperly pitched, and it cannot protect against flooding that comes from elsewhere in the basement. That is why professional pan installation in Wakefield is always a system: the pan, the drain line with verified pitch, the termination that can actually accept water, and the sensor that reports when the system activates. Installed as a system, it is the most cost-effective water-damage prevention in the house.
Pan Materials, Sizing, and Drain Routing
Pans come in galvanized steel, aluminum, and heavy plastic, and the right choice depends on the install. Metal pans resist heat and hold up under heavy tanks for decades, while quality plastic pans will not corrode in damp Wakefield basements. Sizing is non-negotiable: the pan diameter must exceed the tank diameter with room to spare, so a 50-gallon tank needs a pan wider than the tank footprint, not just barely under it. Undersized pans are one of the most common defects we correct.
Drain routing is where installations succeed or fail. The pan drain, typically one-inch PVC, needs continuous downward pitch to its termination: a floor drain, sump pit, laundry standpipe, or daylighted exterior line. Flat or uphill runs hold water and breed mold, and terminations that dump onto the basement floor defeat the purpose. Elevating the tank on a stand inside the pan keeps the base out of incidental water and extends tank life in damp basements. Retrofitting a pan under an existing heater requires disconnecting and lifting the tank, which is why pan installs are most economical when paired with a heater replacement.

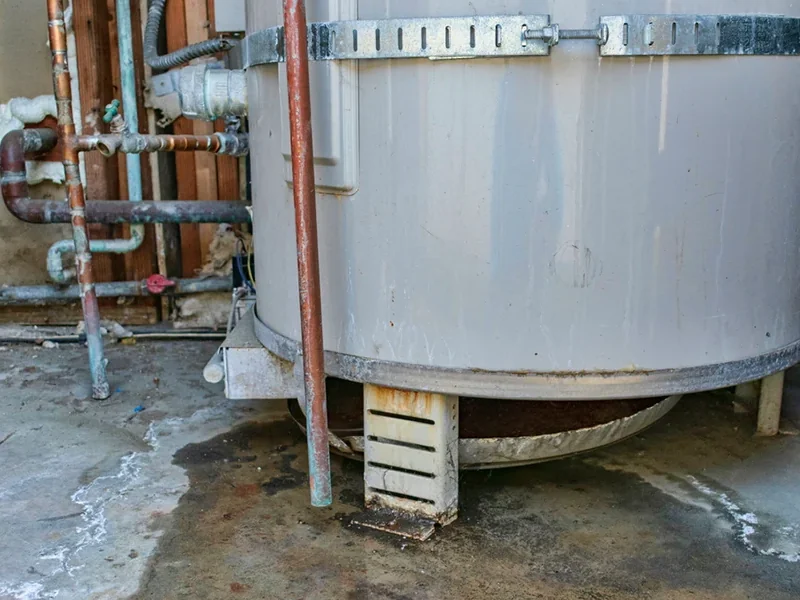

Stands deserve special mention because they solve two problems at once. Elevating the tank a few inches inside the pan keeps the base ring out of the incidental water that collects on Wakefield basement slabs, which directly slows the bottom-up corrosion that kills so many tanks here. The stand must be rated for the tank's full weight, level, and corrosion-resistant itself, otherwise it becomes the weak link. During a retrofit we also take the opportunity to correct the shutoff valve and inspect the dielectric unions, since the tank is already lifted and those components are the leaks the new pan will most likely see.
Pans Plus Early Warning: Sensors and Automatic Shutoff
A pan catches water. A sensor tells you about it. The strongest Wakefield installs pair the pan with early-warning protection: a leak-detector puck set in the pan that sounds an audible alarm and sends a phone alert at the first sign of water, and an automatic shutoff valve on the cold-water feed that closes when the sensor trips. Together they turn a leak discovered on a Friday night into a notification on your phone instead of a flooded basement discovered Monday morning.
This combination is close to essential for finished basements, heaters in closets above living space, and homes that sit empty during workdays or vacations. The sensor costs little, installs in minutes during the pan job, and is the single highest-value addition we make on Wakefield pan installations. Ask for the pan, the sensor, and the auto shutoff as a package, and the most failure-prone appliance in the house becomes one of the best-monitored.
Testing the system after installation takes only minutes and is part of every professional job: water is poured into the pan to verify it drains freely to the termination, the sensor is triggered to confirm the alert reaches your phone, and the automatic shutoff is cycled to prove it closes the feed. Wakefield homeowners should also decide who responds if they are away, because a notification nobody acts on is only half a protection system. We set up the alert routing with you before we leave.
