Many of Arlington's 1890s–1930s two-families and colonials run electric tank water heaters tucked into basement utility corners, and the heating elements inside those tanks live a particular local life. Arlington is on soft MWRA water, so lime scale — the usual element killer — is a minor factor here. What gets Arlington elements instead is rust-flake sediment shed by the original galvanized supply lines still serving so many pre-1940 homes, plus simple age in tanks that have been heating water for a decade or more.
Our technicians test and replace heating elements in electric water heaters throughout Arlington, MA 02474, from East Arlington triple-deckers to the 1950s ranches on the town's edges. The symptoms are unmistakable once you know them: a tank that runs out of hot water halfway through a shower, water that never gets past lukewarm, or a breaker that keeps tripping. Below is how we tell a dead element from a failed thermostat, how the replacement is done without dry-firing the new element, and why Arlington's old galvanized piping changes the maintenance advice.
How Heating Elements Fail in Arlington Homes
The most common complaint is a tank that runs out of hot water far too fast — the first shower is fine, the second is lukewarm. That pattern points to the lower element, which does most of the heating work and takes the most abuse. Water that never gets hotter than lukewarm no matter the thermostat setting usually implicates the upper element or its thermostat, while a breaker that trips repeatedly suggests an element that has grounded out against the tank shell.
Here is where Arlington's plumbing changes the story. Because MWRA water here is soft, lime scale barely factors in — but the original galvanized supply lines in pre-1940 homes shed rust flakes for decades, and that sediment settles directly onto the lower element. Buried in an insulating blanket of rust sediment, the element overheats trying to heat through it and eventually burns through its own sheath. Rumbling or popping sounds during heating cycles are the audible warning that sediment is building up. In Arlington, element failure is usually a sediment story, not a hard-water story.
Rust-Flake Sediment: Arlington's Element Killer
Open the drain valve on a ten-year-old Arlington heater fed by original galvanized pipe and you will understand the problem immediately: the water runs brown with rust flakes and grit. Every one of those particles eventually settles to the tank bottom, right where the lower element lives. A thin layer is harmless; a thick blanket forces the element to run far hotter than its design temperature, and the sheath fails from the outside in.
Our response has two parts. First, when we replace a sediment-killed element, we flush the tank thoroughly so the new element does not inherit the same burial. Second, we fit low-watt-density or lime-life elements in these tanks — their larger surface area spreads the heat load and runs cooler, which buys meaningful extra life in a sediment-heavy tank. For Arlington homes still on original galvanized feeds, we also talk honestly about annual flushing: in this town it is not optional maintenance, it is the difference between a five-year element and a twelve-year one.
Basement Realities: Clearance, Dampness, and Seized Drain Valves
Arlington's low-clearance unfinished basements shape element service in practical ways. Elements mount through the side of the tank, so we need working room beside the heater — in cellars where the tank is shoehorned between the foundation wall and the furnace, simply getting an element socket squarely on the port takes patience. Damp basement air is the other constant: moisture creeps into the wiring compartment behind the access panels and corrodes wire terminals, so we inspect and clean every connection while the power is off rather than just swapping the element and leaving.
The most common complication is the drain valve. To replace an element we must drain the tank below the element port, but the cheap plastic drain valves on older Arlington installs seize, snap, or weep the moment they are touched. We carry replacement brass drain valves for exactly this reason — if the old one fails during service, it gets upgraded on the spot rather than nursed along. It is a small part, but a heater that cannot be drained cannot be serviced.
Winter Load and Element Life in Arlington
January in Arlington means incoming groundwater near freezing, and an electric heater has to work substantially harder to raise that water to 120 degrees. Elements cycle longer and more often through the cold months, and every extra cycle is wear on the sheath and the thermostats. A marginal lower element that limped through October often fails outright in January, which is why no-hot-water calls spike in the first cold snap.
The 1950s ranches on Arlington's edges add their own wrinkle: some route hot-water lines through crawl spaces or unconditioned areas, where heat loss forces the tank to reheat more often and the elements never really rest. If your Arlington electric heater is ten or more years old and has never had its elements checked, a late-fall inspection — testing resistance across both elements and checking the high-limit switch — is cheap insurance against a January cold-shower surprise.
How Electric Water Heater Elements Work — and How We Replace Them

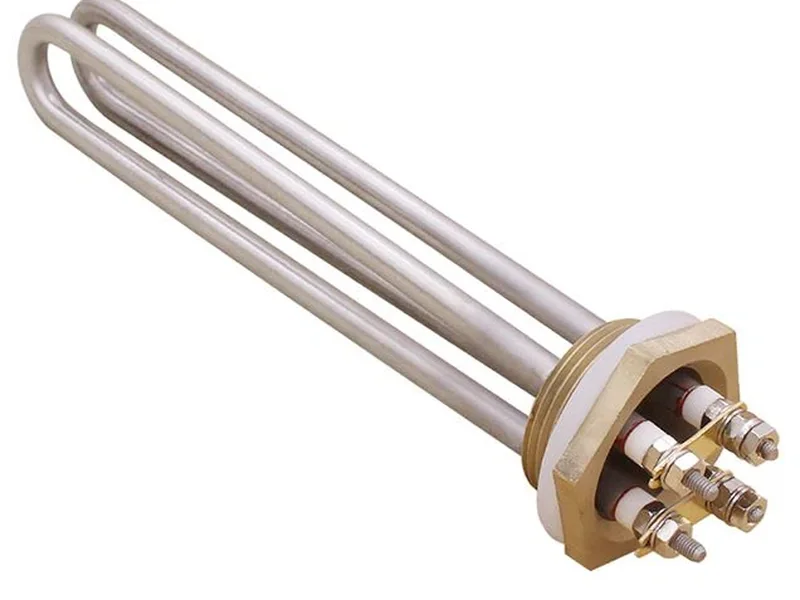

An electric tank water heater heats with two elements — an upper and a lower — each governed by its own thermostat, with the upper thermostat carrying a high-limit (ECO) safety switch. Only one element fires at a time: the upper heats first, then hands off to the lower, which does most of the daily work warming the full tank. Elements are simple resistive coils sealed inside a metal sheath, and they fail in predictable ways. Sediment is the great killer. As minerals and debris settle to the tank bottom, they bury the lower element in an insulating blanket, so it overheats trying to heat through the sludge and eventually burns through its sheath. A dry-fired element — one powered before the tank is fully refilled — destroys itself in seconds. Age, voltage mismatch, and corroded wiring connections account for the rest.
Diagnosis starts at the breaker panel with a multimeter. We check continuity and resistance across each element and test both thermostats plus the high-limit switch before condemning anything, because a tripped ECO or a failed upper thermostat produces the same no-hot-water symptom as a dead element, and replacing the wrong part wastes everyone's time. Replacement is methodical: power off at the breaker and verified dead with a meter, cold water shut off, tank drained below the element port, wires disconnected and labeled, the old element unthreaded with an element socket, the new element seated with a fresh gasket. Then the step that matters most — the tank is completely refilled and air is purged from the hot taps before the breaker goes back on. We match wattage and voltage exactly to the heater's rating plate, and in sediment-prone tanks we fit low-watt-density or lime-life elements, whose larger surface area runs cooler and resists scale buildup far better than standard high-watt-density elements.
Electrical Safety Around Water Heater Elements
An electric water heater runs on a dedicated 240-volt circuit — enough to injure or kill. The breaker must be off and verified with a meter before any access cover comes off, because thermostats can re-energize an element without warning, and a "dead" heater is only dead once it has been tested. Water and electricity share the same metal box here, so we keep the work area dry and we never bypass the high-limit safety switch, which exists to prevent runaway overheating if a thermostat sticks in the closed position.
Homeowners should never restore power to a partially drained tank. An element exposed to air instead of water overheats almost instantly and burns out, turning a simple element swap into a repeat service call. If the breaker trips repeatedly, that is the system telling you something is wrong — usually a grounded element leaking current to the tank shell — and resetting it again and again risks damage to the wiring and the breaker itself. Scalding is the other hazard we watch: after an overheating event we always check the thermostat setpoint, because elements that failed under stress sometimes reveal thermostats that had been running the tank far above safe temperatures.
